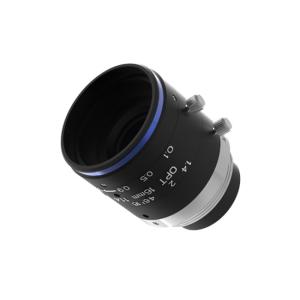

2Megapixels 16mm Machine Vision Camera Lens WD 100-∞ 0.05kg F1.4~F16

Brand Name : OPT

Model Number : OPT-C1614-2M

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-C1614-2M

Focal Length : 16mm

Aperture : F1.4~F16

Working Distance(mm) : 100mm~∞

Distortion : <2.4%

Sensor format : 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″

Back focal length (mm) : 9.53mm

Weight (kg) : 0.05kg

Contact Now

F1.4~F16 2MP Fixed Focal Length Lenses WD 100-∞ 0.05kg Focal Length 16mm OPT-C1614-2M

Product Features

◆ The F/# aperture is F1.4~F16.

◆ Be designed to be compact, light weight and stable

◆ High uniformity: minimized vignetting

◆ High resolution:compatible with 2MP industrial cameras of ≥ 5.5μm pixel size and max. 2/3" sensor (OPT-C0420-2M & OPT-C0620-2M: Max compatible with 1/2")

◆ The OPT-C1614-2M working distance(mm) is 100-∞.

◆ Filter thread of OPT-C1614-2M: M27*P0.5.

◆ OPT-C1614-2M fixed focal length lenses focal length is 16mm.

◆ Back focal length (mm): back focal length is 9.53mm.

◆ Weight of OPT-C1614-2M fixed focal length lens is 0.05kg.

◆ The sensor format of OPT-C1614-2M: 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.

◆ The distortion is less than 2.4%.

◆ FOV angle (H×V×D) is 17.6° | 20.8° | 26.2° | 30.8°, 13.3° | 15.7° | 20.0° | 25.8°, 21.9° | 25.9° | 32.5° | 39.4°.

Model Explanation

OPT-C1614-2M

OPT: Brand name

C: C-Mount

16: Focal length: 16mm

14: F#: 1.4

2M: 2M pixel

Specifications

Product Name	2MP Fixed Focal Length Lenses
Model	OPT-C1614-2M
Focal Length	16mm
Aperture range	F1.4~F16
Working Distance(mm)	100mm-∞
Filter thread(mm)	M27*P0.5
Distortion(%)	Less than 2.4%
Back focal length (mm)	9.53mm
Weight(kg)	0.05kg
Sensor format	1/3″ \| 1/2.5″ \| 1/1.8″ \| 2/3″
FOV angle (H×V×D)	17.6° \| 20.8° \| 26.2° \| 30.8° 13.3° \| 15.7° \| 20.0° \| 25.8° 21.9° \| 25.9° \| 32.5° \| 39.4°

Resolution Comparison

2Megapixels 16mm Machine Vision Camera Lens WD 100-∞ 0.05kg F1.4~F16

Image taken via 2MP Fixed Focal Length Lens Image taken via other lens

Application Examples:

Inspection of lenses on plate

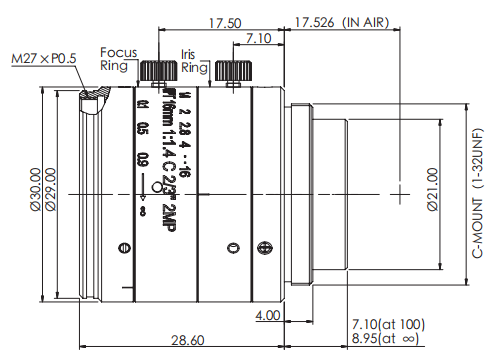

Dimensions (mm)

OPT-C1614-2M

2Megapixels 16mm Machine Vision Camera Lens WD 100-∞ 0.05kg F1.4~F16
