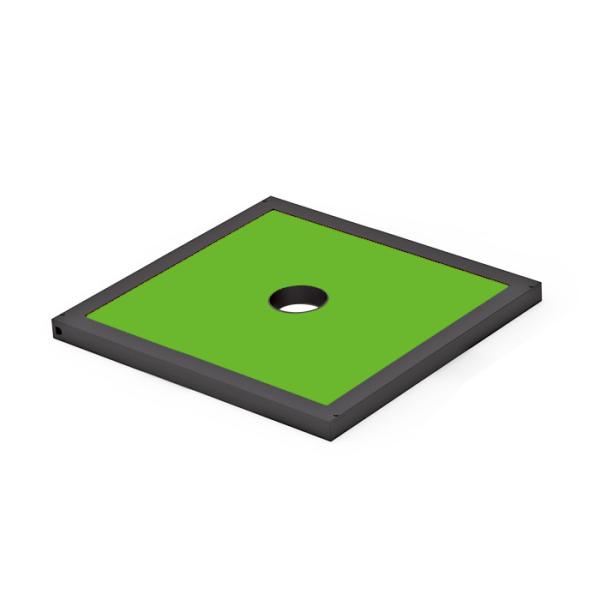

510mm Length 3.9A 93.6W One Channel Machine Vision Backlight

Brand Name : OPT

Model Number : OPT-FLCA510500K

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-FLCA510500K

Product name : Machine Vision Backlight With Centre Hole

Color : Red/Blue/Green/White

Output : 3.9A/93.6W

Channel : 1

Housing Size（Length） : 510mm

Recommended Controller : OPT DPA6024E

Feature : Good luminosity

Contact Now

3.9A/93.6W 1 Channel Machine Vision Backlight With Centre Hole 510mm Housing Length Good luminosity OPT-FLCA-K Series OPT-FLCA510500K

Product Features

◆ OPT-FLCA-K Series machine vision backlight with centre hole will provide direct backlight type for selection

◆ OPT-FLCA510500K have good luminosity and uniformity and is the first choice for large-size back lighting.

Application Cases

◆ Printing industry defect detection

◆ OCR for electronic products

◆ Defect detection of disposable lunch box

◆ Electronic components positioning identification

◆ Positioning of automotive parts contour

Specifications

Model	OPT-FLCA510500K
Color	Red/Blue/Green/White
Output	3.9A/93.6W
Channels	1
Housing Size(Length)	510mm
Recommended Controller	OPT-DPA6024E

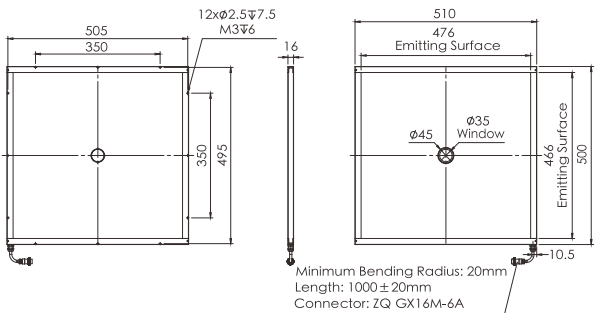

Dimensions (mm)

OPT-FLCA510500K

Product Features

510mm Length 3.9A 93.6W One Channel Machine Vision Backlight

Application Cases: Keycap position

510mm Length 3.9A 93.6W One Channel Machine Vision Backlight
