Mag. 0.188x MTF30 100lp/Mm F5.3 Machine Vision Telecentric Lens 0.40kg

Product Categories
OPT Machine Vision Tech Co., Ltd.
Contact Now

Mag. 0.188x MTF30 100lp/Mm F5.3 Machine Vision Telecentric Lens 0.40kg

Brand Name : OPT

Model Number : OPT-TS0188-138S-AL

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-TS0188-138S-AL

Mag. (x) : 0.188

Aperture (F#) : F5.3

DOF (mm) : 12.37mm

MTF30 (lp/mm) : 100lp/mm

Weight (kg) : 0.40kg

WD(mm) : 138±3

Feature : Low distortion

Contact Now

TS Series Large FOV Bi-telecentric Lenses F5.3 Mag. 0.188x MTF30 100lp/mm 0.40kg OPT-TS0188-138S-AL

Product Features
◆ The F/# aperture is 5.3.
◆ The OPT-TS0188-138S-AL working distance(mm) is 138±3mm.
◆ OPT-TS0188-138S-AL long WD machine vision telecentric lenses magnification is 0.188x.
◆ Image circle Ø (mm) of OPT-TS0188-138S-AL is 9mm.
◆ The weight(kg) of OPT-TS0188-138S-AL long WD machine vision telecentric lens is 0.40kg.
◆ Maximum distortion(%) of OPT-TS0188-138S-AL is 0.1%.

◆ The DOF(mm) of OPT-TS0188-138S-AL: 12.37mm.

◆ MTF30(lp/mm) of OPT-TS0188-138S-AL is 100lp/mm.

◆ FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 30.9×22.9; FOV (mm×mm) of 1/1.8″ | 7.2×5.3: 38.3×28.7

Model Explanation
OPT-TS0188-138S-AL
OPT: Brand name
TS:TS series large FOV bi-telecentric lenses
0188: Magnification: 0.188x
138: Working distance: 138mm
S: Short type
AL: Adjustable back focal length
Specifications
Product Name TS Series Large FOV Bi-telecentric Lenses
Model
OPT-TS0188-138S-AL
F/# aperture 5.3
Working distance
138±3
Mag. (x) 0.188x
Image circle Ø (mm)

9mm
Maximum distortion(%)

0.1%

Weight(kg) 0.40kg
DOF (mm)
 12.37mm
MTF30(lp/mm)

100lp/mm

FOV (mm×mm) of 1/3″ | 4.8×3.6

30.9×22.9
FOV (mm×mm) of 1/1.8″ | 7.2×5.3 38.3×28.7


Application Examples:

Mag. 0.188x MTF30 100lp/Mm F5.3 Machine Vision Telecentric Lens 0.40kg
Locating of SIM tray

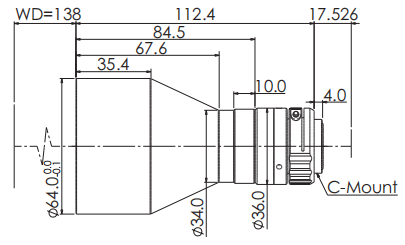

Dimensions (mm)
OPT-TS0188-138S-AL

Mag. 0.188x MTF30 100lp/Mm F5.3 Machine Vision Telecentric Lens 0.40kg
